According to Mordor Intelligence, the global automotive zinc die casting market is growing steadily at around 3% CAGR. It means that zinc die casting powers millions of car components worldwide. This process shapes strong, precise, and durable parts that modern vehicles rely on every day. In this post, you’ll learn what zinc die casting is, how it works, its key advantages, and why it’s essential to the automotive industry.
Zinc die casting is a manufacturing process where molten zinc alloy is injected into a steel mold, or die, under high pressure. The molten metal quickly fills the mold cavity, solidifies, and forms the final shape of the part. This method delivers strong, precise components with minimal machining. Because zinc melts at a relatively low temperature—around 420°C (788°F)—it uses the hot chamber die casting process. In this system, the injection mechanism is submerged directly in molten zinc, allowing faster cycles and longer tool life. By contrast, cold chamber die casting (used for aluminum or copper alloys) requires the molten metal to be poured into a separate chamber before injection. For zinc, the hot chamber setup is far more efficient, saving both energy and time.
Two main families of alloys dominate zinc die casting—ZAMAK and ZA.
| Alloy Family | Examples | Key Features | Typical Uses |
|---|---|---|---|
| ZAMAK Series | 3, 5, 7 | Balanced strength and ductility, good for thin-wall parts | Electrical housings, hardware, decorative components |
| ZA Series | ZA-8, ZA-12, ZA-27 | Higher aluminum content, stronger and harder, better bearing capacity | Structural parts, gears, automotive components |
ZAMAK alloys are known for smooth finishing and dimensional accuracy. ZA alloys, on the other hand, offer superior tensile strength and hardness, performing well under stress and load. In general, all zinc alloys feature excellent thermal conductivity, corrosion resistance, and ease of casting.
The zinc die casting process follows a series of well-defined steps. Each step is critical to achieving high-quality, dimensionally accurate parts.
The die is cleaned to remove residues, lubricated for easy ejection, and clamped tightly. This ensures the molten zinc fills every cavity evenly.
Molten zinc is drawn from the hot chamber and injected into the mold at high pressure—often exceeding 10,000 psi. The pressure allows the metal to flow quickly, filling even intricate geometries.
Once the metal solidifies, the die opens and ejector pins push the casting out. The rapid cooling gives zinc castings a fine-grained structure and high precision.
Extra material, called flash, is trimmed off using mechanical or trim dies. The casting can then undergo finishing—such as powder coating, plating, or painting—depending on its application.
Zinc die casting offers multiple performance and production advantages that make it one of the most popular casting methods today.
Excellent Strength and Durability
Zinc alloys are inherently tough. They resist impact and wear, making them ideal for structural and load-bearing parts.
High Precision and Dimensional Stability
This process achieves tight tolerances—up to ±0.001 inch—allowing accurate and repeatable components even with thin walls.
Design Flexibility
Zinc’s fluidity enables thin walls (down to 0.5 mm) and complex designs. It supports net-shape manufacturing, reducing or eliminating post-machining.
Cost and Efficiency Advantages
Zinc casts faster than aluminum—150 – 200 % quicker. Tooling lasts up to 10 times longer, lowering costs by nearly 50 % in high-volume production.
Surface Finish and Aesthetics
Parts come out with smooth, low-porosity surfaces suitable for chrome plating or powder coating. They also deliver excellent visual appeal for exposed components.
Corrosion Resistance and Environmental Advantages
Zinc resists moisture, road salt, and chemicals—critical in harsh environments. It’s also fully recyclable and requires less energy to process, supporting sustainable manufacturing. These combined strengths are exactly why zinc die casting has become a preferred choice in the automotive industry—a topic explored in the next section.
Zinc die casting has become a cornerstone of modern automotive manufacturing. Its unique combination of strength, precision, and cost-efficiency enables automakers to build safer, lighter, and longer-lasting vehicles. The following sections explain in detail why the advantages of zinc die casting make it a perfect fit for the automotive parts manufacturing industry.
Automotive parts face constant vibration, heat, and impact. Zinc die-cast components handle all of these stresses exceptionally well. They maintain stability under dynamic loads and high-temperature conditions—something critical for both safety and performance.
Zinc’s natural toughness allows it to absorb shock and resist cracking under pressure.
| Property | Zinc Alloy Advantage | Why It Matters for Vehicles |
|---|---|---|
| Tensile Strength | 280–400 MPa | Handles stress from braking, steering, and acceleration |
| Impact Resistance | Excellent | Reduces fracture risk in collisions |
| Thermal Conductivity | High | Dissipates heat from engine and brake systems |
These qualities make zinc a trusted material for key safety parts—where precision and reliability can’t be compromised.
Zinc die casting allows designers to create small, detailed, and lightweight components that other metals struggle to replicate. Its excellent fluidity fills every cavity, even thin walls and sharp corners, producing intricate shapes with no need for extra machining.
Below are some examples of how zinc supports different vehicle systems:
| Category | Typical Zinc Die-Cast Parts | Function / Benefit |
|---|---|---|

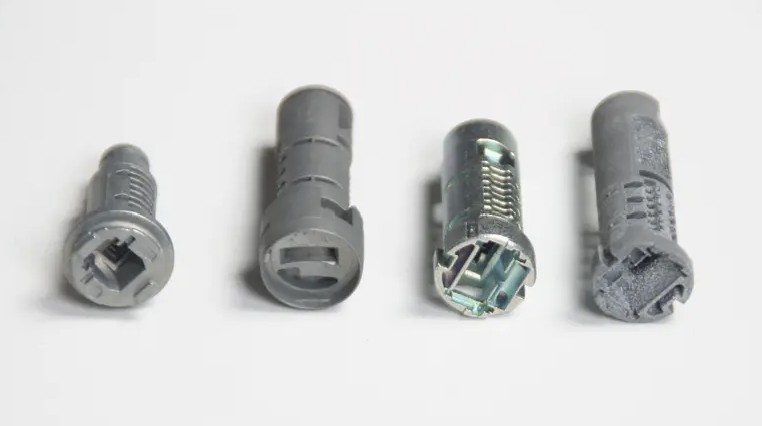

| Interior | Door locks, handles, seat belt pulleys | Strong, smooth operation and tight tolerances |
| Engine & Transmission | Steering gears, brake components, transmission housings | Heat-resistant and durable under mechanical load |
| Electrical Systems | Sensor enclosures, switch housings, rearview mirror frames | Conductive and precise for electronic integration |
| Exterior Components | Sunroof frames, wipers, decorative trims | Corrosion-resistant and visually appealing |
Zinc die casting combines strength and design freedom, letting engineers achieve lightweight efficiency without sacrificing structural integrity.
Automotive manufacturing depends on speed and consistency. Zinc die casting delivers both. Its fast cycle times—up to 200 % faster than aluminum—mean more parts per hour. The molds last longer, too, often 10 times the lifespan of aluminum tooling. Fewer machining steps and cleaner finishes reduce labor costs and waste. For large-scale production, this translates into lower per-unit costs and faster time-to-market.
| Factor | Zinc Casting | Aluminum Casting |
|---|---|---|
| Cycle Time | 3–5 s per shot | 6–10 s per shot |
| Tool Life | 1,000,000+ cycles | 100,000–150,000 cycles |
| Machining Need | Minimal | Moderate to high |
Cars operate in harsh conditions—rain, salt, mud, and constant temperature changes. Zinc die-cast parts thrive in these environments. Zinc’s natural corrosion resistance shields components from oxidation and rust, even in coastal or winter climates. It also prevents paint blistering and surface degradation. As a result, automotive parts like mirror housings, wiper arms, and door handles retain their strength and appearance longer, reducing replacement and maintenance costs.
Modern automakers face growing pressure to meet environmental goals. Zinc die casting helps them achieve that. Zinc is 100 % recyclable, and the process consumes less energy due to its low melting point. Many manufacturers now reuse excess zinc scrap directly in production—reducing waste and conserving resources. It fits perfectly into green vehicle initiatives, supporting cleaner, more sustainable production across the automotive supply chain.
Thanks to its wide-ranging advantages, zinc die casting has become an essential process across the automotive industry. It enables the production of components that demand high strength, precision, and durability in every vehicle system. Their excellent formability, heat resistance, conductivity, and corrosion protection allow them to perform reliably under harsh conditions—both inside the cabin and beneath the hood.
From safety-critical mechanisms to intricate interior trims, zinc alloys are used throughout modern cars. Below is the practical applications in the automotive industry
| Component Type | Typical Zinc Die-Casting Example | Function / Benefit |
|---|---|---|
| Safety Systems | Seatbelt gears, door lock housings | High strength and vibration damping for impact safety |
| Powertrain | Transmission mounts, engine hoods | Excellent heat and pressure resistance for long-term reliability |
| Electrical & Sensors | Switch housings, connectors | Superior electrical conductivity and dimensional precision |
| Body & Exterior | Mirror bodies, wiper components | Outstanding corrosion resistance and weather durability |
| Interior | Decorative handles, knobs | Smooth, aesthetic surface finish that enhances design quality |
Besides zinc die casting, other materials such as aluminum, magnesium, and steel are also widely used in automotive parts manufacturing. Each material offers its own strengths—from lightweight efficiency to extreme heat resistance. However, zinc die casting continues to stand out as a preferred choice for many critical components thanks to its high precision, long tool life, excellent surface quality, and superior corrosion resistance. The comparison below highlights how zinc performs against these common alternatives in real automotive applications.
Zinc Advantages:
Zinc excels in dimensional accuracy and surface finish. It can achieve near-net shapes with minimal machining, saving time and production costs. Its die life lasts up to ten times longer than aluminum molds because zinc melts at a lower temperature, reducing thermal wear. Zinc also supports fine detailing—ideal for components like door locks, housings, and decorative trim.
Aluminum Advantages:
Aluminum’s primary strength lies in its lightweight nature, which helps reduce overall vehicle mass and improve fuel efficiency. However, it requires higher casting temperatures (around 660°C) and a cold chamber process, which increases tooling and energy costs. While aluminum provides good heat resistance, it typically needs more machining and is less suited for ultra-thin or intricate parts.
| Property | Zinc | Aluminum |
|---|---|---|
| Casting Process | Hot chamber | Cold chamber |
| Melting Point | ~420°C | ~660°C |
| Tool Life | Very long | Shorter |
| Precision | Excellent | Good |
| Weight | Heavier | Lighter |
| Cost | Lower overall | Higher energy and tooling cost |
Zinc Advantages:
Zinc provides superior corrosion resistance, impact strength, and safety—it’s a non-sparking metal, making it safer for sensitive automotive environments. It’s easier to cast and doesn’t need special coatings or protective layers to prevent oxidation. Zinc’s density also contributes to vibration damping, useful for components like gear housings or seat belt pulleys.
Magnesium Advantages:
Magnesium is about 35% lighter than zinc, offering weight reduction benefits for vehicles aiming to improve fuel economy. However, it’s more expensive to process and requires protective coatings to resist corrosion. Magnesium also needs higher casting control to prevent oxidation, and its tooling wears faster.
| Property | Zinc | Magnesium |
|---|---|---|
| Weight | Moderate | Very light |
| Corrosion Resistance | Excellent | Requires coating |
| Strength | High | Moderate |
| Casting Speed | Fast | Moderate |
| Safety | Non-sparking | Flammable dust risk |
| Cost | Lower | Higher |
Zinc Advantages:
Zinc alloys offer tight dimensional tolerances and low processing costs, especially for small and medium-sized components. They require less machining and produce smooth, clean surfaces suitable for plating or painting. Zinc’s superior corrosion resistance ensures durability, even in humid or coastal climates.
Brass, Steel, and Cast Iron Advantages:
These metals are stronger under extreme mechanical loads and can withstand very high temperatures. They’re typically used where maximum rigidity or heat resistance is required—like heavy engine blocks or structural frames. 9However, they come at the expense of higher cost, more machining, and greater part weight.
| Property | Zinc | Brass / Steel / Cast Iron |
|---|---|---|
| Processing Cost | Low | High |
| Machining | Minimal | Extensive |
| Precision | Excellent | Moderate |
| Corrosion Resistance | High | Varies (lower in iron) |
| Electrical Conductivity | Good | High (in brass) |
| Weight | Light-to-medium | Heavy |
Zinc’s balance of castability, corrosion resistance, and affordability allows automakers to replace heavier, costlier materials while maintaining the strength and reliability needed in demanding vehicle environments.
While zinc die casting offers many advantages, it also comes with a few practical challenges engineers must address during design and production. Understanding these limitations helps manufacturers optimize part quality, cost, and performance.
Zinc die casting is best suited for small and medium-sized components. Because zinc is relatively dense and heavy, large parts can become difficult to cast efficiently. The high pressure needed for bigger molds increases machine wear and energy use. That’s why zinc casting is typically used for compact, detailed automotive components—like brackets, housings, or connectors—where precision matters more than size.
| Factor | Zinc Die Casting Capability | Impact on Production |
|---|---|---|
| Part Size | Small to medium | Ensures uniform filling and cooling |
| Pressure Required | High | Limits very large components |
| Best Use | Structural, safety, or decorative parts | Ideal for intricate detail |
Zinc’s density is about 6.6 g/cm³, nearly 2.5 times higher than aluminum. This added weight can affect overall vehicle mass if large amounts are used. However, zinc’s strength and durability allow designers to use thinner sections, reducing material consumption. In many cases, the difference in weight is offset by longer service life and lower maintenance needs.
| Material | Density (g/cm³) | Relative Weight |
|---|---|---|
| Zinc Alloy | ~6.6 | Heavier |
| Aluminum Alloy | ~2.7 | Lighter |
| Magnesium Alloy | ~1.8 | Lightest |
Porosity is one of the most common concerns in die casting. It occurs when trapped air or gas creates small voids inside the part. To minimize this, engineers must design molds with optimized gating systems, venting channels, and consistent shot speeds. Proper lubrication and maintaining the right die temperature also help the molten zinc fill cavities evenly and solidify without air entrapment.
Key design tips:
Use smooth flow paths for molten metal.
Avoid sharp corners and thick-to-thin transitions.
Maintain uniform wall thickness for better solidification.
Stable temperature and pressure are essential for casting precision. If the mold gets too cold, metal may solidify prematurely and cause incomplete fills. Too hot, and it can lead to flash, shrinkage, or surface defects. Most hot chamber systems operate between 390°C–430°C, striking the balance between flowability and cooling speed. Pressure control is equally important—too low leads to porosity, while excessive pressure can damage the mold or create burrs. Regular monitoring and process automation help maintain consistent quality across production runs.
| Parameter | Ideal Range | Effect on Quality |
|---|---|---|
| Mold Temperature | 390–430°C | Ensures smooth metal flow |
| Injection Pressure | 7,000–10,000 psi | Reduces air pockets and surface defects |
| Cooling Time | 2–6 seconds | Controls microstructure and precision |
The future of zinc die casting in the automotive sector looks increasingly promising as the industry shifts toward lightweight, high-performance, and sustainable manufacturing. Automakers are under pressure to reduce emissions and improve fuel efficiency, which drives the demand for materials that can deliver strength without excess weight. While zinc is denser than aluminum, its exceptional strength, thin-wall capability, and ability to create complex shapes allow engineers to design smaller, more efficient parts. By replacing heavier steel components, zinc helps reduce vehicle weight while maintaining durability and structural integrity—key factors in next-generation automotive design.
Zinc die casting is also becoming integral to the rapid rise of electric and intelligent vehicles. Its excellent thermal stability and electrical conductivity make it ideal for EV applications such as battery housings, motor casings, connectors, and sensor brackets. Zinc’s ability to shield against electromagnetic interference ensures reliability for sensitive electronics used in autonomous systems and digital displays. As EV adoption accelerates, the demand for precise, conductive, and corrosion-resistant materials like zinc alloys will continue to expand across both powertrain and electronic subsystems.
Sustainability and digital transformation will further define the evolution of zinc die casting. Zinc is 100% recyclable, and recycled alloys are already being used to reduce carbon emissions and energy consumption in automotive production. At the same time, factories are adopting automation, robotics, and real-time process control to enhance quality and efficiency. From AI-based defect detection to automated trimming and mold temperature regulation, these technologies enable smarter, cleaner, and more sustainable manufacturing. Together, these advances ensure that zinc die casting will remain a cornerstone of innovation in the automotive industry for years to come.
Zinc die casting delivers a rare mix of strength, precision, and cost efficiency. It supports complex, durable, and lightweight automotive components. Recyclable alloys and energy-saving production make it sustainable too. That’s why zinc die casting remains a cornerstone of modern automotive manufacturing.
A: Zinc die casting uses a hot-chamber process at lower temperatures, allowing faster cycles, finer detail, and longer tool life. Aluminum requires higher melting points and cold-chamber casting, making it slower and costlier.
A: Zinc offers exceptional strength, corrosion resistance, and precision. It supports complex designs, resists wear, and performs reliably under vibration, heat, and pressure.
A: Yes. Zinc is 100% recyclable without losing its properties, reducing waste and energy use in sustainable manufacturing.
A: The ZAMAK series (3, 5, 7) and ZA alloys (ZA-8, ZA-12, ZA-27) are most common, valued for strength, ductility, and thermal stability.
A: Zinc enables thin-wall, high-strength parts that replace heavier steel components, improving fuel efficiency without compromising durability.
