In modern manufacturing, mold manufacturing is the cornerstone for achieving efficient production of complex parts. Whether it is injection molding or die casting, molds play a crucial role. This article will delve into the technological process of casting mold manufacturing and, in combination with practical application cases, help readers better understand this complex and precise manufacturing process.
Mold design is the primary link in the manufacturing of casting molds, which directly determines the performance of the molds and the quality of the final products. During the design process, engineers need to comprehensively consider multiple factors such as the shape, size, material properties and production process of the product. For example, for zinc alloy die casting molds, the characteristics such as the fluidity, shrinkage rate and cooling rate of zinc alloy must be taken into account during the design to ensure that the molds can precisely form high-quality products. Meanwhile, the mold design also needs to optimize the mold structure, such as the gating system, cooling system and exhaust system, etc., in order to improve production efficiency and product quality.
In the design stage, the use of computer-aided design (CAD) software can greatly improve the accuracy and efficiency of the design. Through 3D modeling and simulation analysis, engineers can optimize molds in a virtual environment, reduce design flaws and shorten the development cycle. In addition, close communication with the client is also an important part of the design stage to ensure that the design plan can meet the client's specific needs and expectations.

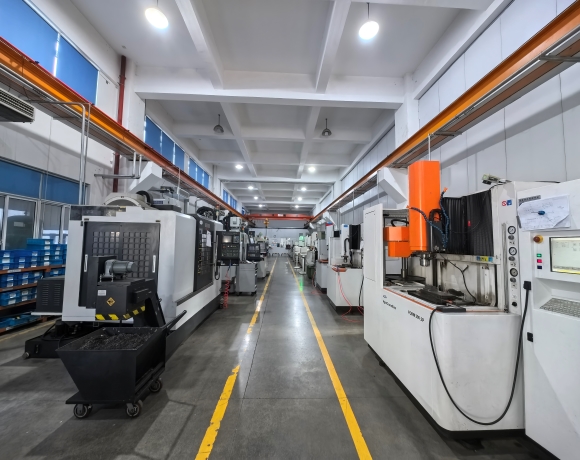

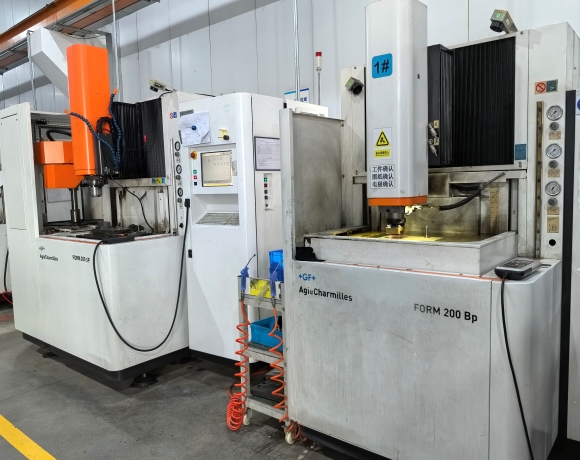

After the design is completed, the mold enters the manufacturing stage. This stage requires a high degree of precision and exquisite craftsmanship. Mold manufacturing usually involves various processing techniques, such as CNC milling, electrical discharge machining and wire cutting, etc. These processes can ensure that each component of the mold meets the precision requirements at the micrometer level. For instance, when manufacturing high-precision injection molds, CNC milling can be used to process complex cavities and cores, while electrical discharge machining is suitable for processing small holes and complex shapes.
The selection of materials is also of vital importance in the mold manufacturing process. Generally, molds are made of high-strength steel to ensure that they can withstand high-temperature and high-pressure working environments. For some special molds, such as aluminum alloy die-casting molds, special heat treatment of the materials is also required to enhance their hardness and wear resistance. In addition, the surface treatment process of the mold should not be ignored. Good surface treatment can increase the service life of the mold and improve the surface quality of the product.
After the mold manufacturing is completed, a trial mold needs to be conducted to verify the performance of the mold and the quality of the product. During the mold testing process, engineers will inject molten metal or plastic materials into the mold to observe the dimensional accuracy, surface quality and internal defects of the formed products, etc. If any problems are found, such as dimensional deviations, gas holes or shrinkage cavities, etc., the mold needs to be adjusted and optimized. This process may need to be repeated many times until the mold can stably produce products that meet the quality requirements.
During the mold trial stage, it is very important to collect and analyze data. Through precise measurement and analysis, engineers can determine the root cause of the problem and take corresponding measures to improve it. For example, if obvious weld lines are found on the product surface, it may be necessary to optimize the design of the gating system; If there are air holes inside the product, it may be necessary to adjust the exhaust system of the mold. By constantly optimizing the mold design and manufacturing process, the stability and reliability of the mold can be enhanced, thereby ensuring the high quality and consistency of the products.
With the continuous advancement of technology, the mold manufacturing industry is also constantly developing and innovating. New materials, new processing technologies and new design concepts keep emerging, bringing more possibilities to mold manufacturing. However, mold manufacturing still faces many challenges, such as improving production efficiency, reducing costs, and minimizing environmental pollution. For mold manufacturers, only by constantly learning and innovating can they remain invincible in the fierce market competition.
By delving deeply into the technological process of mold manufacturing, we can better recognize the significance and complexity of this industry. Whether it is an injection mold maker or a die casting mold manufacture, they all need to constantly pursue excellence in every link such as design, manufacturing and optimization to meet the growing demands of customers. In the future development, mold manufacturing will continue to play its core role in the manufacturing industry, promoting the innovation and progress of various products.
